CVD Diamond Coating Service

GCT has 17 years of CVD diamond coating experience and we can provide comprehensive CVD diamond coating services to tool-makers for a win-win partnership. GCT is currently one of the world’s largest producers of CVD diamond coating with seven CVD diamond coating devices and we have plans to expand our coating capacity. Tool-makers can now expand their product portfolio through GCT's diamond coating technology without the need to invest capital and time to research coating technology. Contact us for more detail discussion about the possibilities.

coating service

Why Us?

GCT MicroSpeed ​​diamond coating technology is the application of CVD (Chemical Vapour Deposition) technology to super-hard tungsten carbide steel. It is composed of alternating polycrystalline layers and nano-polycrystalline layers, and the finished coating is comparable to the strength of natural diamonds. GCT MicroSpeed ​​diamond coating technology prevents the coating from peeling off or melting due to high-speed processing. According to different product applications and tool diameters, the coating thickness and number of layers processed are different.

Production Process

GCT Diamond coating technology

GCT MicroSpeed ​​diamond coating technology is the application of CVD (Chemical Vapour Deposition) technology to super-hard tungsten carbide steel. It is composed of alternating polycrystalline layers and nano-polycrystalline layers, and the finished coating is comparable to the strength of natural diamonds. GCT MicroSpeed ​​diamond coating technology prevents the coating from peeling off or melting due to high-speed processing. According to different product applications and tool diameters, the coating thickness and number of layers processed are different.

The world's first 0.05mm drill with GCT MicroSpeed multilayer diamond coating.

As the global leader in CVD diamond coating , GCT is pleased to announce

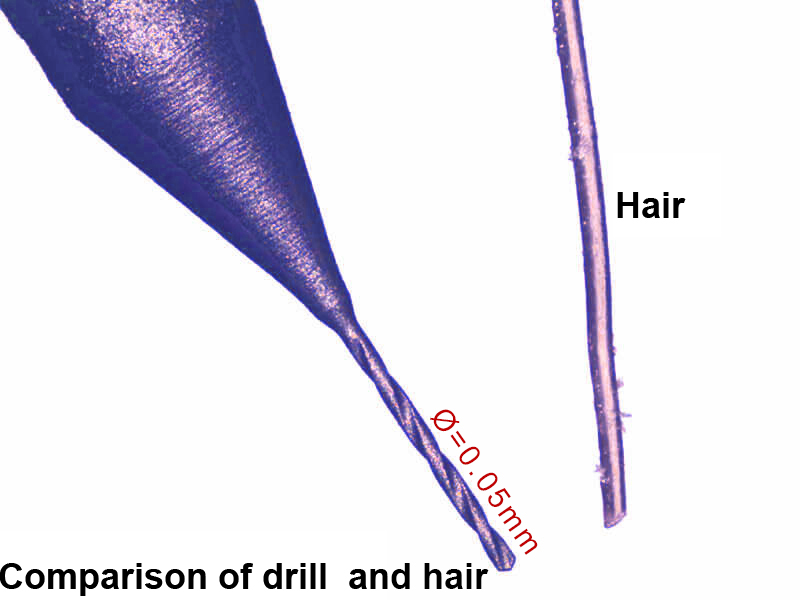

Attached is a photo comparison of this CVD diamond-coated 0.05mm drill with strand of human hair , you can see that this is barely visible with the naked eye. Hence , it is an impressive feat to be able to coat such a small micro-tool with GCT's CVD MicroSpeed Diamond Coating.

GCT銑刀代工鍍膜規格

GCT Router Range

GCT Drill Range

GCT CVD mulitlayer diamond coating

GCT CVD multilayer diamond coating technology is composed of alternating polycrystalline layers and nano-polycrystalline layers. The advantage of alternating layers is the prevention of crack propagation which can result in coating cracking and peeling. Hence, GCT CVD diamond coating does not crack or peel easily.

GCT diamond coating application

*Used to process new materials or high-hardness non-ferrous metals
*Applicable to all PCB materials including IMS aluminium or copper PCBs

*Applicable to other high-hardness materials like CFRP, GRP, glass, quartz, ceramics and silicon



Advantages of GCT CVD diamond coating

*Significant longer tool life than uncoated tools, up to 20 times.

*Longer tool life means tool cost savings (typically more than 30%~50%)

*Super high hardness means high wear resistance (minimum tool wear) and high dimensional accuracy

*Excellent processing ability

*High hardness value similar to natural diamond (10,000 HV)

*High thermal conductivity

*Produces fine and smooth surface finish

GCT CVD diamond coating hardness comparison

The hardness of GCT CVD diamond coating is close to natural diamond (10,000HV).

Comparison of maximum operating temperature of GCT CVD diamond coating

The temperature resistance of CVD diamond coating is up to 800°C.
